Sashes sit on the frame when stop, wheels on rails when sliding
Polyamide 14.8mm (9/16) thermal break
Sight line 122.0mm (4 3/4") including frame
Frame depth 120.0mm (4 3/4")
Maximum 2440mm (96") width for each panel
EPDM exterior and interior gasket
Double glazed

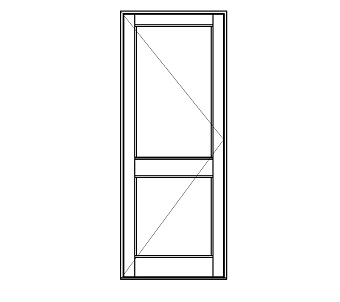

Entrance Door 3570 Series
Polyamide 16mm thermal break
Multiple sight line and middle rail options
Frame depth 57.2mm (2 1/4")
Double glazed
Compatible with curtain wall and storefront systems
Entrance Door 3100 Series
Non-thermal performance
Multiple sight line and middle rail options
Frame depth 44.5mm (1 3/4")
Single sheet or double glazed
Compatible with curtain wall and storefront systems
Polyamide 30mm thermal break
Sight line 136.8mm (5 3/8") including frame
Frame depth 75.0mm (3")
EPDM exterior and interior gasket
Double or triple glazed
45° corner jointed
Integrate with 1070 fixed window
|
|
